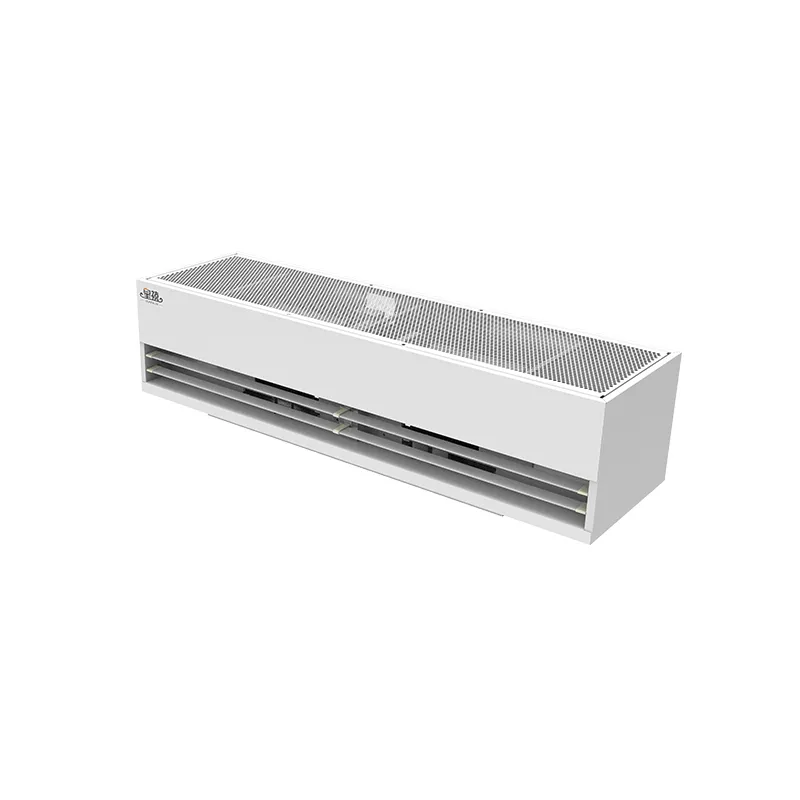

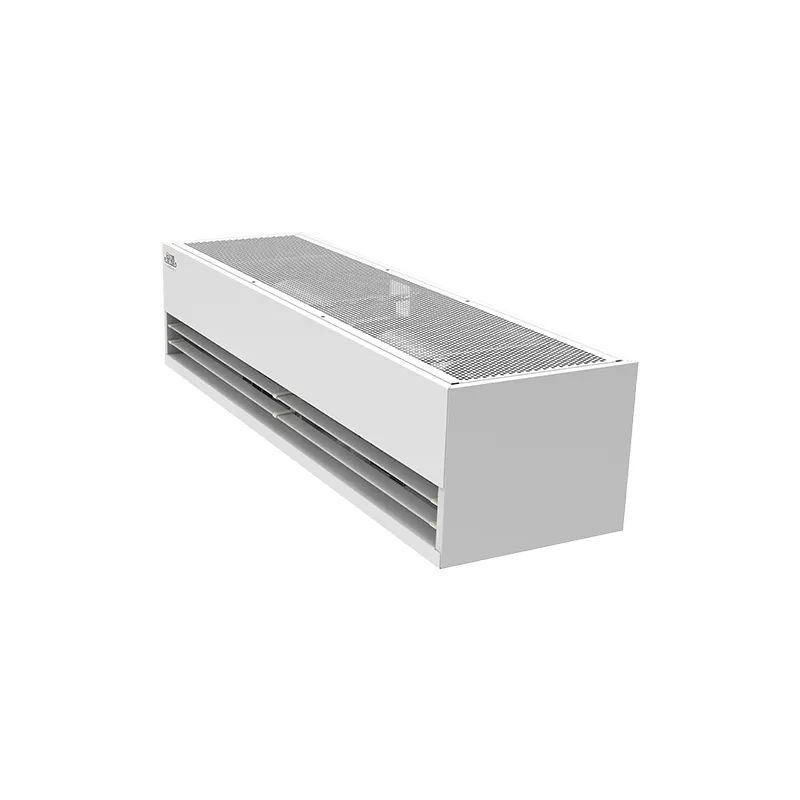

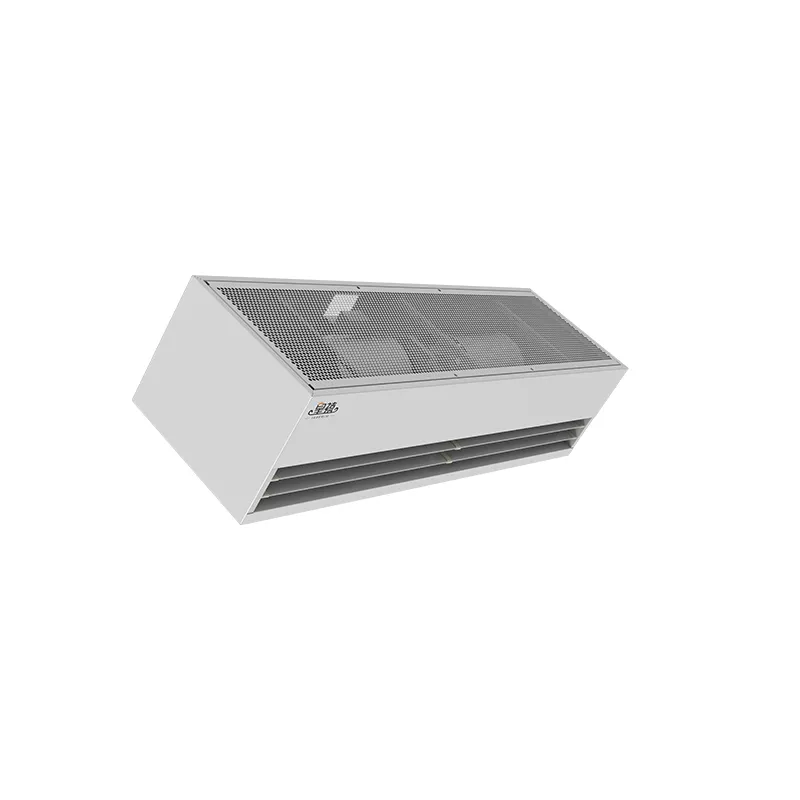

INDUSTRIAL AIR CURTAIN
Managing climate control in large spaces can be challenging. From maintaining stable indoor temperatures to keeping insects, dust, and debris out, our industrial air curtains are engineered to handle these demands effortlessly. Designed for high efficiency, they deliver a powerful air stream across wide entryways while maintaining low noise levels, ensuring reliable performance in demanding industrial environments.Industrial air curtain creates a highly efficient air barrier that stabilizes the indoor environment and minimizes energy loss. Built for heavy-duty applications, it delivers powerful, long-lasting performance for large industrial entrances.
SKU:90cm/100cm/120cm/150cm/180cm/200cm
Category:Air Curtain G Series, Industrial Air Curtains
Product Description
Industrial Air Curtain-Parameters
| Model | Voltage | Frequency | Power | Air Speed | Air Volume | Weight | Product Size |
| HFM-4509-L-GA | 380V | 50HZ | 1300w | 25m/s | 3760m³/h | 21kg | 90*35.2*30.6 cm |
| HFM-4510-L-GA | 380V | 50HZ | 1400w | 25m/s | 4150m³/h | 31kg | 100*35.2*30.6 cm |
| HFM-4512-L-GA | 380V | 50HZ | 2000w | 25m/s | 5640m³/h | 42kg | 120*35.2*30.6 cm |
| HFM-4515-L-GA | 380V | 50HZ | 2600w | 25m/s | 7520m³/h | 52kg | 150*35.2*30.6 cm |
| HFM-4518-L-GA | 380V | 50HZ | 2800w | 25m/s | 8500m³/h | 58kg | 180*35.2*30.6 cm |
| HFM-4520-L-GA | 380V | 50HZ | 3300w | 25m/s | 9400m³/h | 69kg | 200*35.2*30.6 cm |
Industrial Air Curtain – Key Advantages
High-Pressure Centrifugal Turbine Design
Equipped with an industrial-grade centrifugal impeller, the unit generates strong static pressure and concentrated airflow, ensuring a stable air barrier even in high-ceiling environments.
Effective for 6–8 m Installation Height
The high-pressure airflow maintains its velocity over distance, making it suitable for factories, large warehouses, loading bays, and equipment rooms with 6–8 m mounting height.
